AMGO OHX-10 10,000 Lb. 2-Post Clear-Floor Lift – Extra-Tall
Part
AMGOHX10
- Extra‑Tall Clear‑Floor Design for More Under‑Lift Room
- Overall Height About 144" (Check Ceiling Before Install)
- Max Lifting Height: 78 3/4" – 87 3/4"
- Two‑Post, Direct‑Drive Hydraulic System
- Super‑Asymmetric Arms for Better Door/Entry Clearance
- Overhead Safety Shutoff Protects Raised Vehicles
- 99 1/2" – 105 1/2" Drive‑Thru (with Width Kit)
- 2.0 HP / 220V Power Unit
- Toe Guards, Tool Trays, Standard Double-Screw Rubber Pad with 1/2" Pin Diameter, and 3" Extension Adapters
- Overall Height: 144" (12')
Part # AMGOHX10
AMGO OHX‑10 is the extra‑tall version of the 10,000 Lb. clear‑floor 2‑post lift and is ideal for shops that want more working room under SUVs and lifted trucks. with an overall height of about 144" and lifting height up to 87 3/4", technicians can stand fully upright under the vehicle. Dual direct‑drive cylinders, overhead safety shutoff, and Super‑Asymmetric arms keep operation safe and quick.

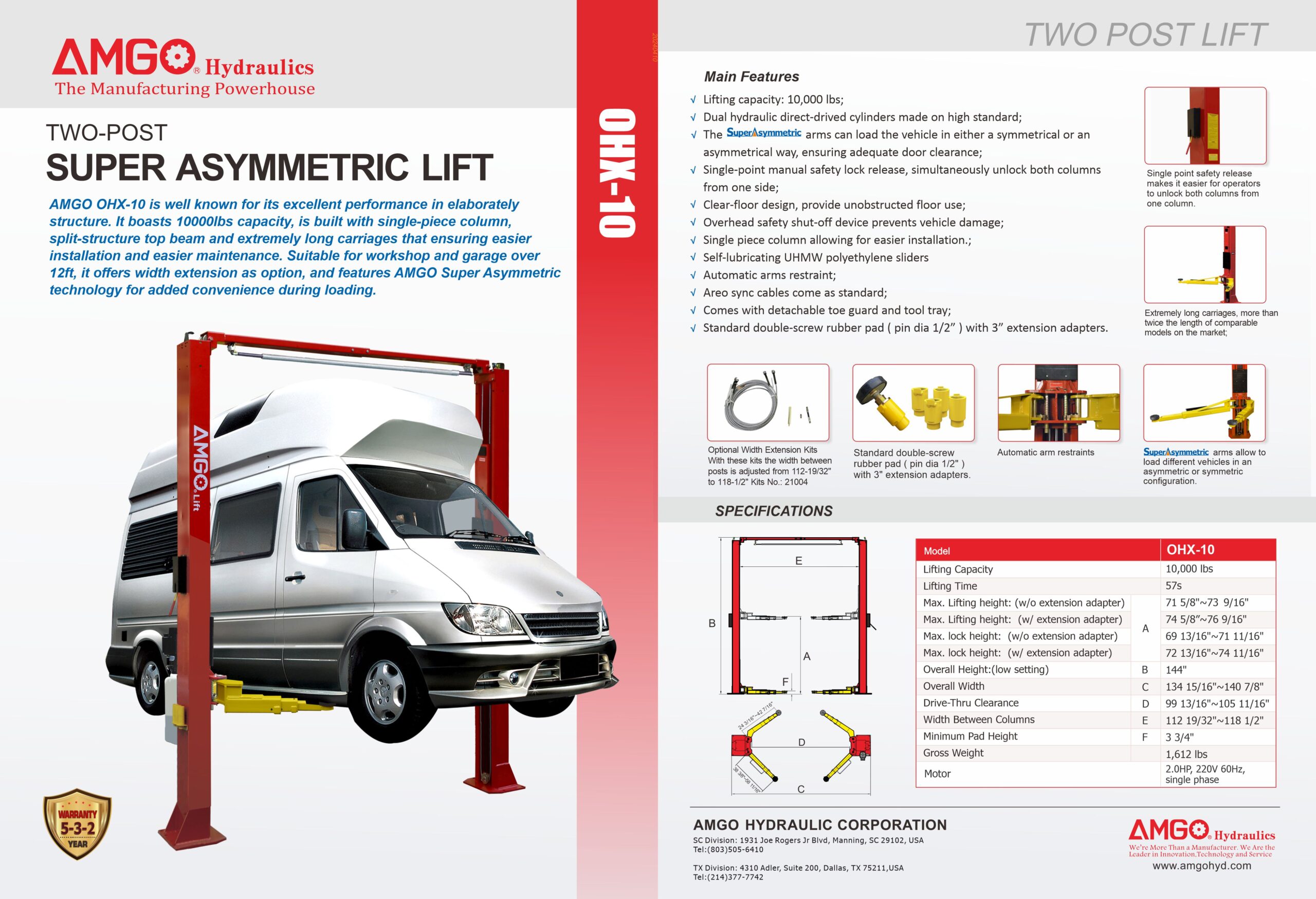

AMGOHX10_BROCHURE
AMGOHX10_MANUAL| Name | AMGO OHX-10 10,000 Lb. 2-Post Clear-Floor Lift – Extra-Tall |
| Part # | AMGOHX10 |
| SKU | |
| Brand | AMGO |
| Weight | 1,612.00 lb |
| Warranty | Manufacturer's Warranty |
