AMGO OHX-10H 10,000 Lb. 2-Post Clear-Floor Lift – High-Rise

Part

AMGOHX10H

Special offloading may be required such as lift gate service. Please call 1-877-298-6651 to discuss offloading options.

FREE standard shipping to the 48 contiguous United States . If shipping to Alaska, Hawaii or the U.S. Territories, please contact us for a freight quote.

Two Height Settings: 157" – 168" Overall Height
Lifts Vehicles 78 3/4" – 87 3/4"
Clear‑Floor Design for Unobstructed Shop Flow
Super‑Asymmetric Arms for Flexible Loading
Dual Direct‑Drive Cylinders
Overhead Safety Shutoff Protects Roofs/Racks
2.0 HP / 220V Single‑Phase Power Unit
Ideal for Sprinters, Lifted Trucks and Tall Techs
Standard Double-Screw Rubber Pad with 1/2" Pin Diameter, and 3" Extension Adapters
Adjustable Overall Height: 157 – 168" (13'1"–14')

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Part # AMGOHX10H

AMGO OHX‑10H is the high‑rise 10,000 Lb. overhead model with two height settings (157"–168") for shops with 14 ft ceilings that want maximum under‑car working height. It lifts to 87 3/4", uses long carriages for extra stability, and keeps the floor clear for transmission jacks and tall stands.

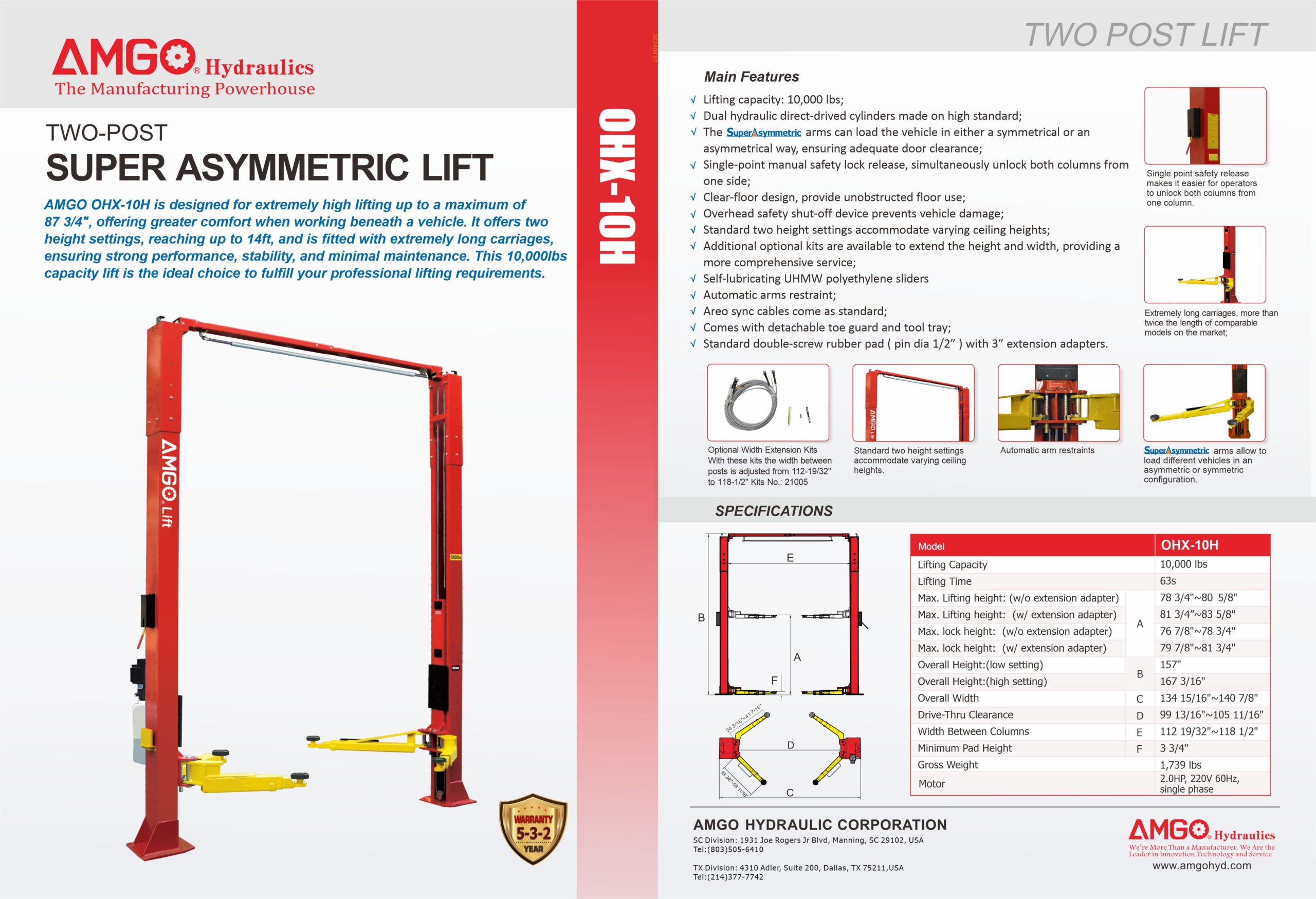

AMGOHX10H_BROCHURE

AMGOHX10H_MANUAL

Specifications

Name	AMGO OHX-10H 10,000 Lb. 2-Post Clear-Floor Lift – High-Rise
Part #	AMGOHX10H
SKU
Brand	AMGO
Weight	1,739.00 lb
Warranty	Manufacturer's Warranty
